Peugeot 206 WRC

///////////////////////// Peugeot 206 WRC ////////////////////////

SETUP LINKS:

-GRAVEL - https://acstuff.ru/s/cOU3OS
-SNOW - https://acstuff.ru/s/r9298P
-TARMAC - https://acstuff.ru/s/_rNa4Y

Funciones:

CSP:
* Extra A - abrir puerta izquierda / open left door
* Extra B - abrir puerta derecha / open right door
* Extra C - abrir capot trasero / open trunk
* Extra D - abrir capot delantero / open hood


SETUP: (visuals)

* Aleron 3 - Barra luces / lightbar
* Aleron 4 - Guardabarros / mud flaps
* Aleron 5 - Llantas asfalto opcionales / optional tarmac rim
* Aleron 6 - Ruedas de tierra / gravel wheels
* Aleron 7 - Copiloto / co-driver
* Aleron 8 - Ruedas de nieve / snow wheels

CREDITOS:

Codemasters (dirt 2.0): - Modelo 3d

Koldo83:
- Trabajo 3d y texturas / 3D work & textures
- Animaciones del coche y del piloto / driver anims.
- Luces de refracción / refraction lights

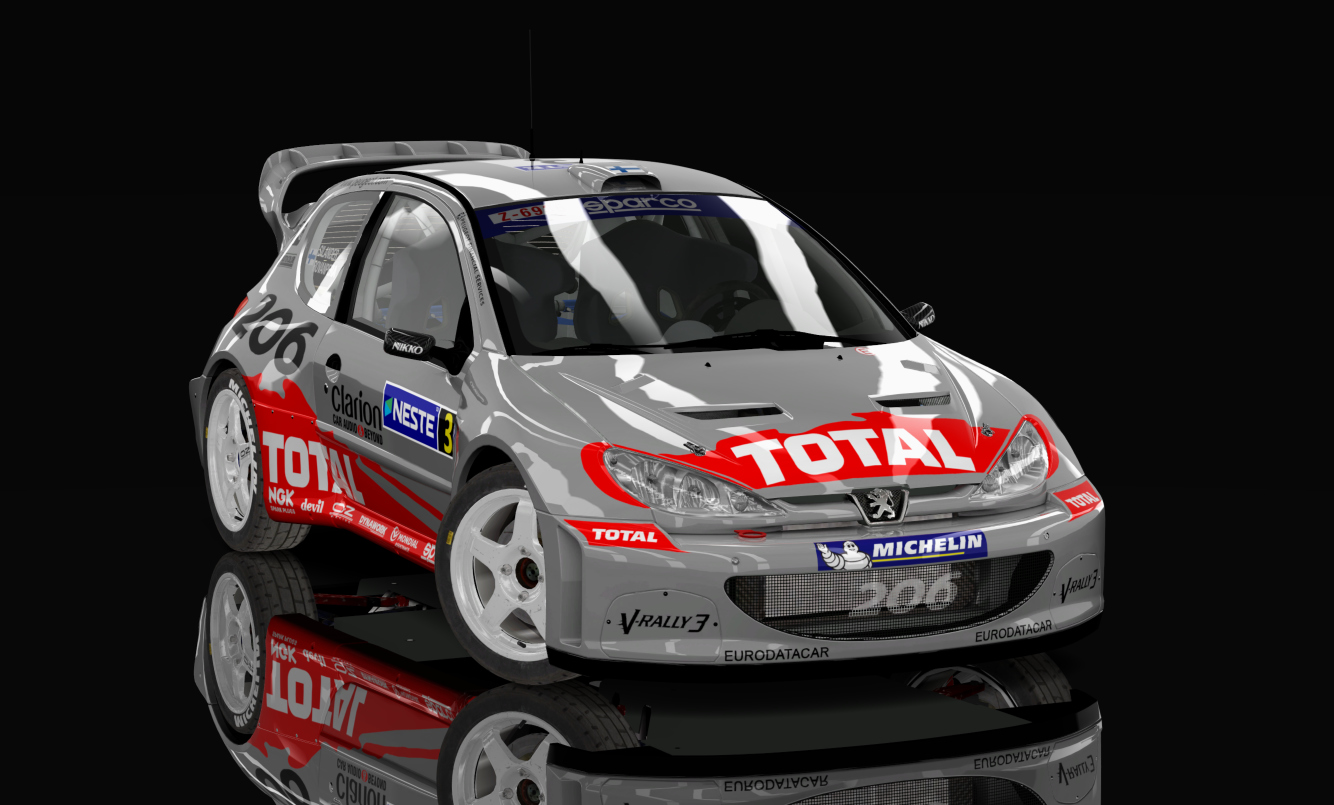

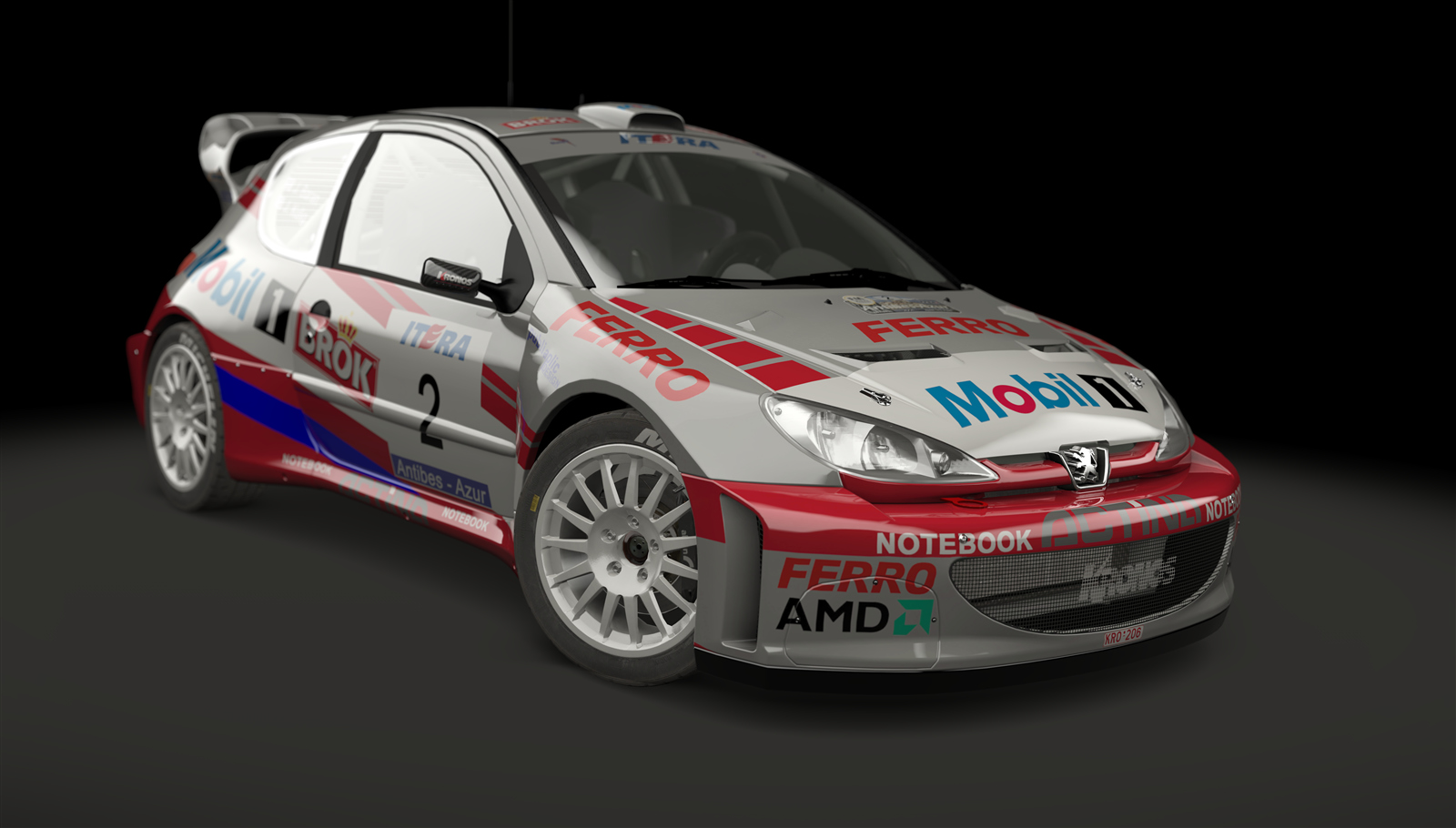

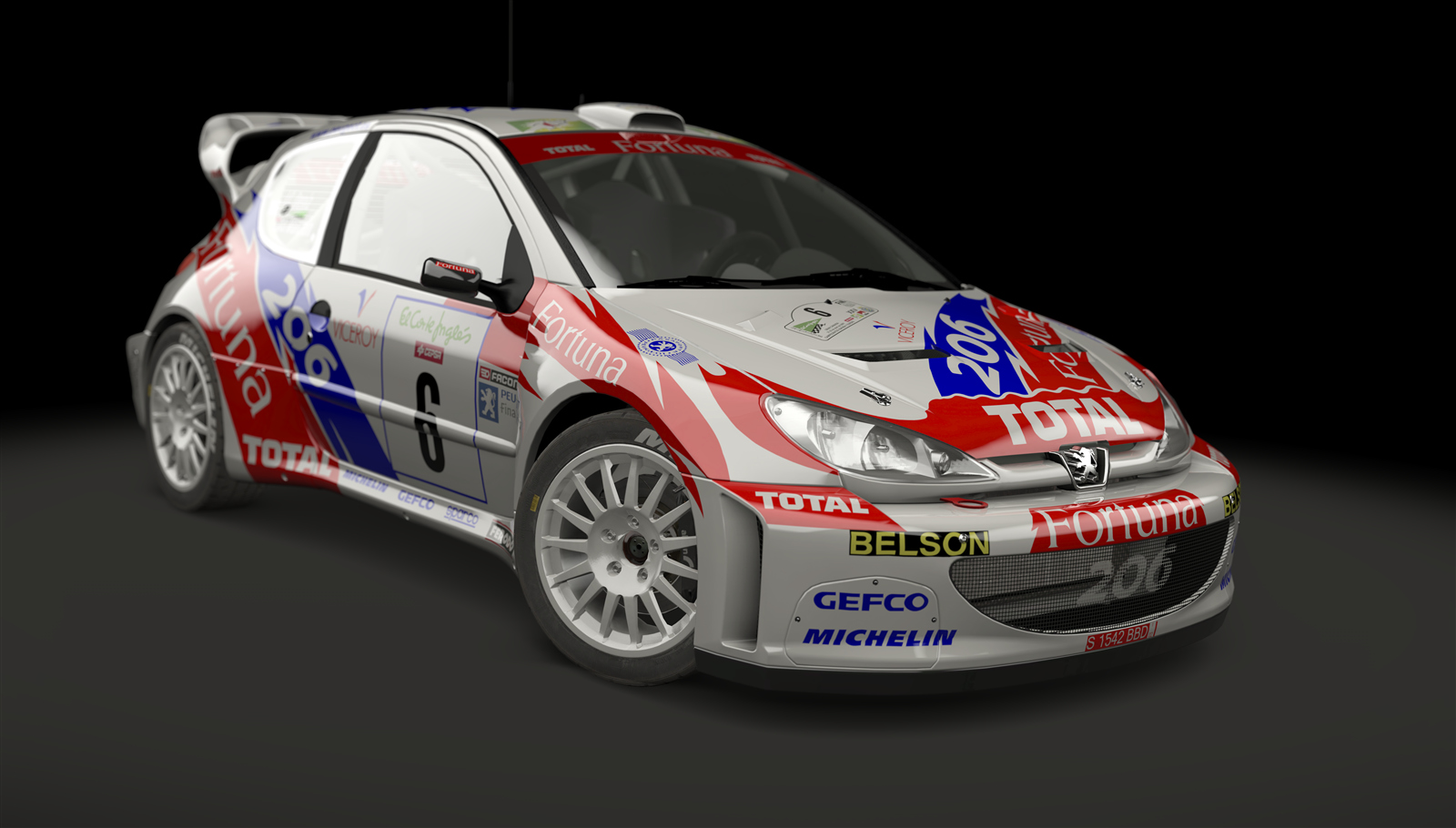

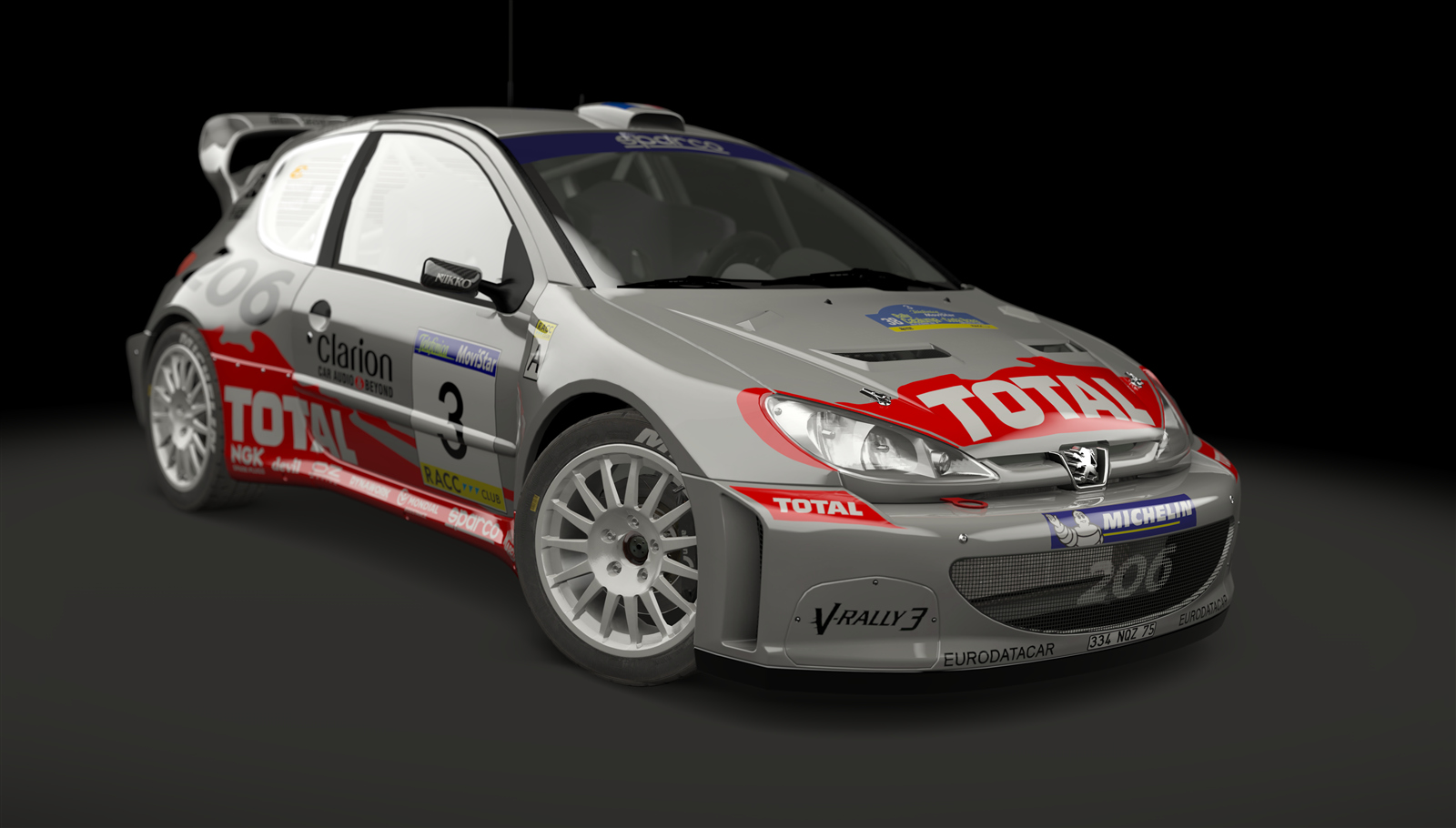

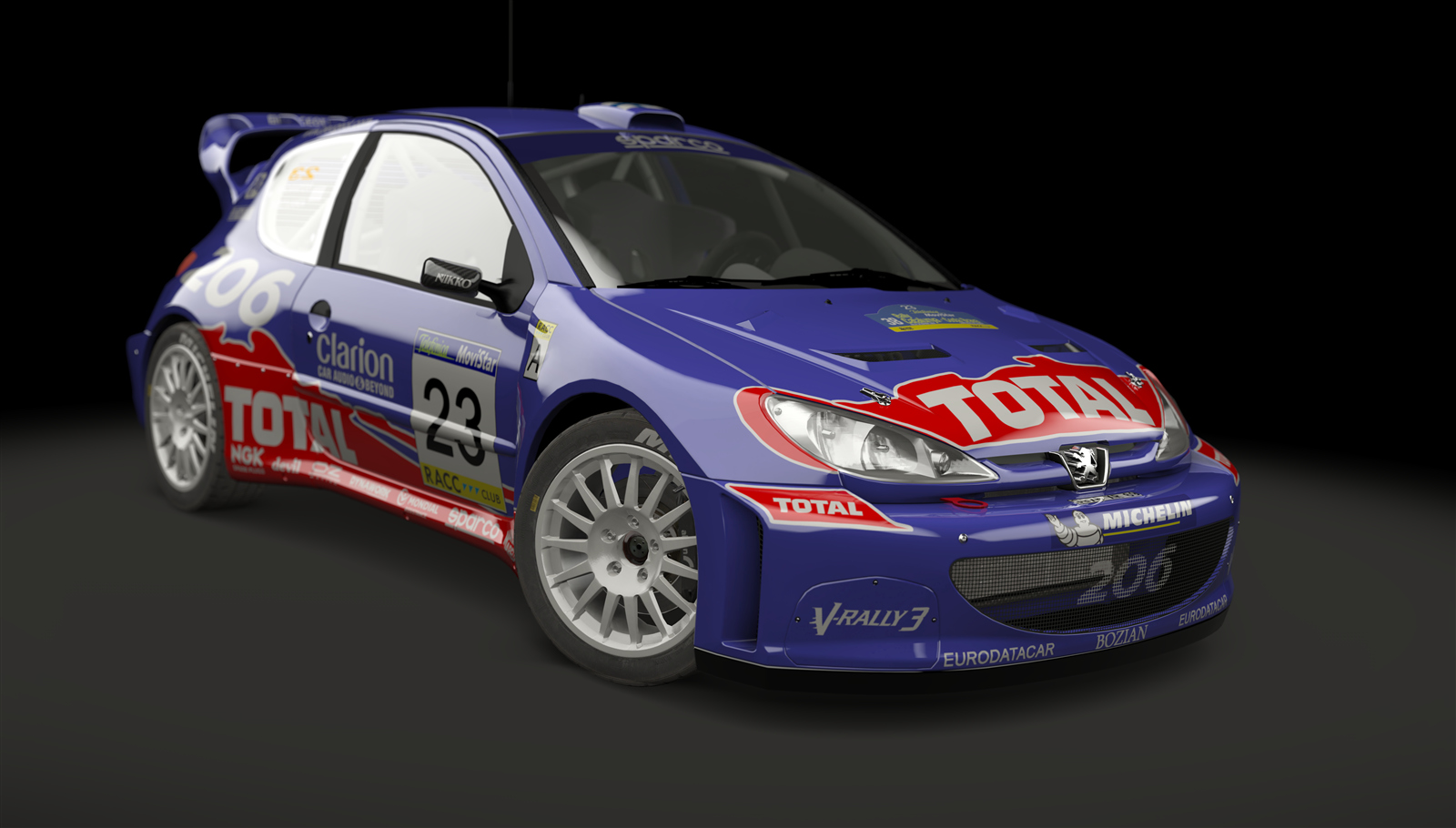

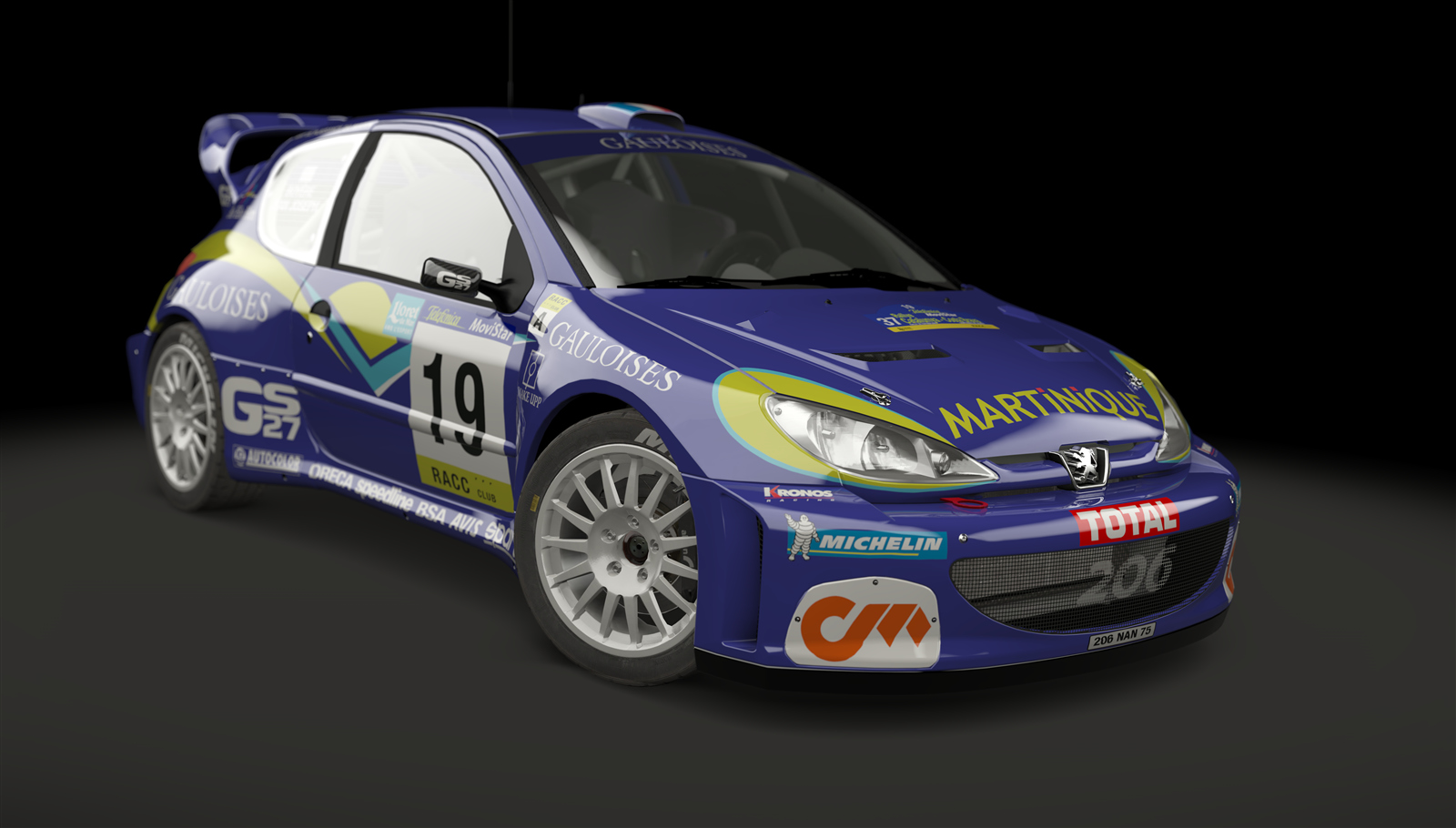

- Skins -Delecour 1999, Panizzi 2002, Gromhol 2003, Rovanpera 2002, Kulig 2002, Rossi, Verdes garage.

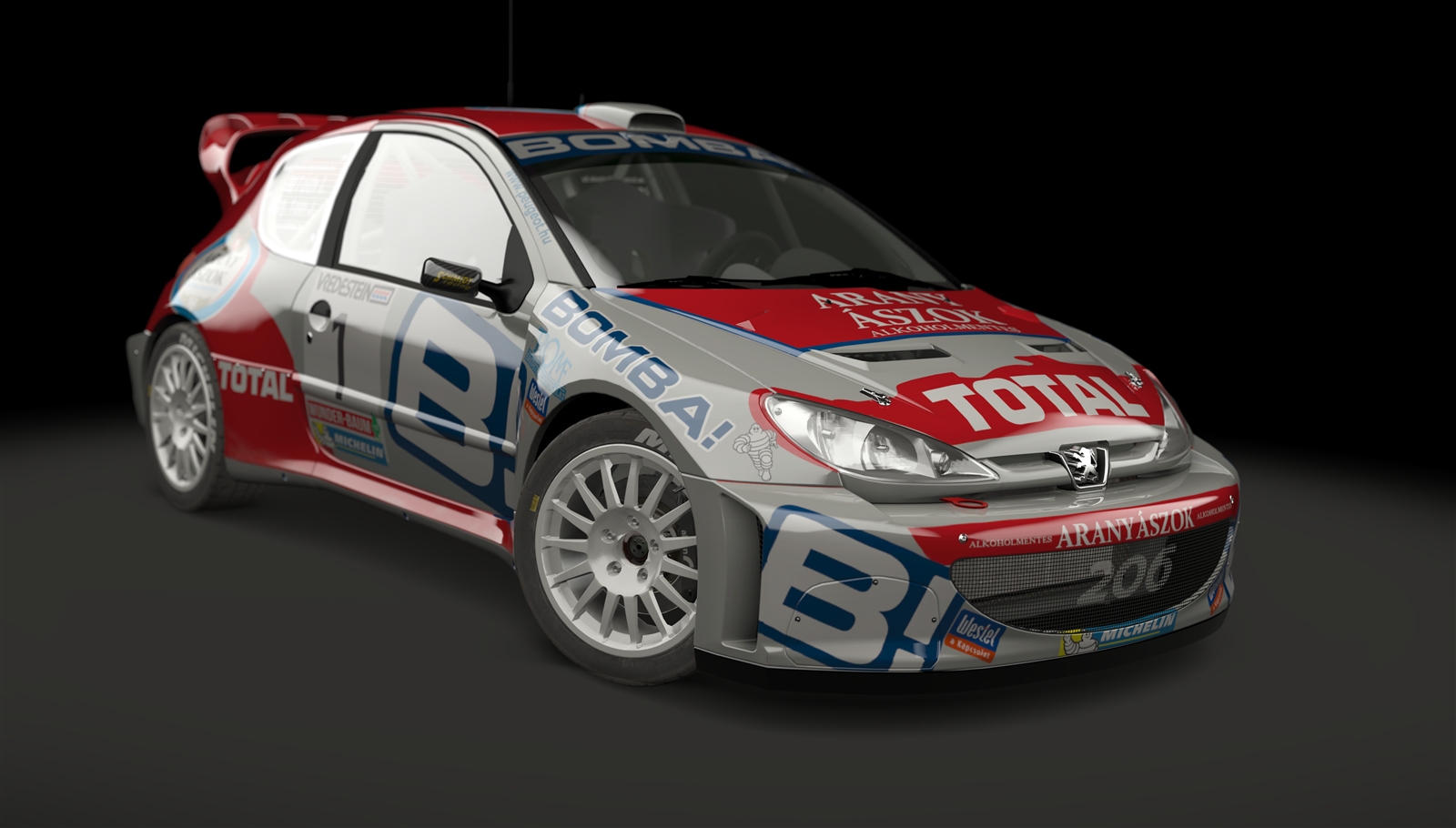

- Bomba (convertida, autor original Mesa´s Artworks)

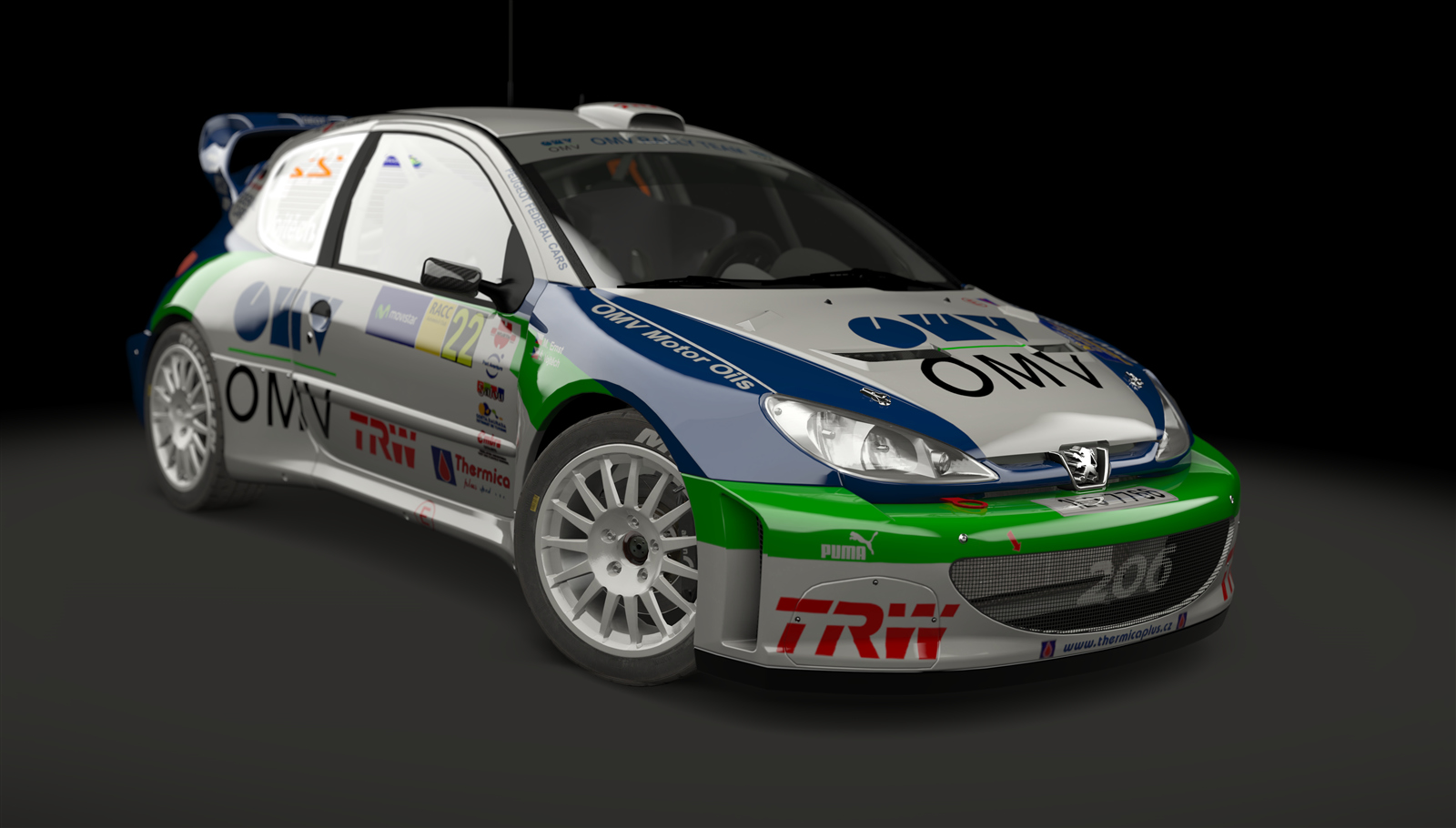

- OMV 2006 (convertida, autor original Autorjirka2951)
- Shell Helix Timo Salonen (scratch made)

Verdes garage:
- Datos del coche / car data
- Físicas completas / car physics
- Alineado y setups / alignment & setups

Flyingsaucer:
- Mucha ayuda y consejos / help & support

SRD:
- Skins - Luis Monzón 2001

RALLY SOUND:
- Bitto69


FICHA TÉCNICA:

- Group/Class A/8 Homologation number: A 5604 (02/01 WR, 08/02 WR, 19/03 WR, 25/04 WR, 31/01 WR2 and 32/02 WR2-1/6/2002)
Years active 1999 - 2004 Homologation start: 1/5/1999
Homologation end: 31/12/2009

- ENGINE
-Type PSA XU9J4 straight 4cyl, 4 stroke, petrol engine located front transverse
-Capacity 1997.4 cc WRC: x 1.7 = 3395.6 cc
-Bore x Stroke (mm) 85.0 x 88.0
-Compression ratio 8.5:1
-Output power - torgue 300 HP / 5250 rpm 53.5 kgm (525 Nm) / 3500 rpm
-Main bearings 5 of 60mm diameter connecting rod length between centers 153mm, big end bearing diameter 49mm
-Materials block: cast iron, 93mm bore spacing cylinderhead: cross flow aluminium alloy with hemispherical combustion chambers
-Cams/valves dual overhead camshafts (DOHC), belt driven 4 valves/cyl. - 16 valves total. 33.5mm inlet valve diameter, 29.2mm exhaust valve diameter. 24.5o angle between inlet valve and vertical, 23o angle between exhaust valve and vertical
-Aspiration 1 x Garrett/Allied Signal TR30R turbocharger (cast iron turbine 60mm diameter, aluminium compressor 69.1mm diameter) with air/water (2001+, air/air) intercooler, 34mm turbo restrictor and catalytic converter fitted, Magneti-Marelli Step 9 multipoint electronic fuel injection pressure:
-Ignition Magneti-Marelli Step 9 electronic, firing order 1-3-4-2
-Cooling system jacketed watercooled with pump, radiator, fan and thermostat
-Lubrication system oil cooler

- TRANSMISION
-Type four wheel drive Peugeot/X-trac 6-speed sequential, with steering wheel mounted paddles. It is located longitudinally behind the engine and in the center of the chassis
-Diffrential ratio /1 active/hydro-electronically controlled front, rear and center differentials. 50%-50% F-R torque distribution
2006+: Limited slip front and rear differentials
-Clutch dry carbon triple disk, 152mm diameter

- CHASSIS/BODY
-Type steel monocoque with roll-cage, and front/rear tubular subframes. 3 door hatchback steel bodyshell with extended steel wheel arches, polypropylene bumbers and a rear top plastic airofoil
-Front suspension mac pherson strut with lower L wishbones, coil springs, telescopic gas shock absorbers and -cabin electronically adjustable- antiroll bar
-Rear suspension trailing torsion beam axle with coil springs, telescopic gas shock absorbers and -cabin electronically adjustable- antiroll bar
-Steering system rack and pinion power assisted
-Brakes ventilated front disks with 280-390mm disk diameter and 2/4/6/8/12 aluminium piston calipers. ventilated rear disks with 250-360mm disk diameter and 2/4/6/8 aluminium piston calipers dual circuit with servo, adjustable ratio split front to rear

- DIMENSIONS
length: 4.012 m (158") width: 1.770 m (69.7") height: 1.300 m (51.2")
wheelbase: 2.448 m (96.4") front track: 1.534 m (60.4") rear track: 1.534 m (60.4")
Rims - tires tarmac: 8" x 18", gravel: 7" x 15" Michelin, tarmac: N04 or N20 or N24 20x65/18 (225/40-18")
Weight 1230 kg
Weight/power 4.1 kg/HP
Fuel tank 85 lt
